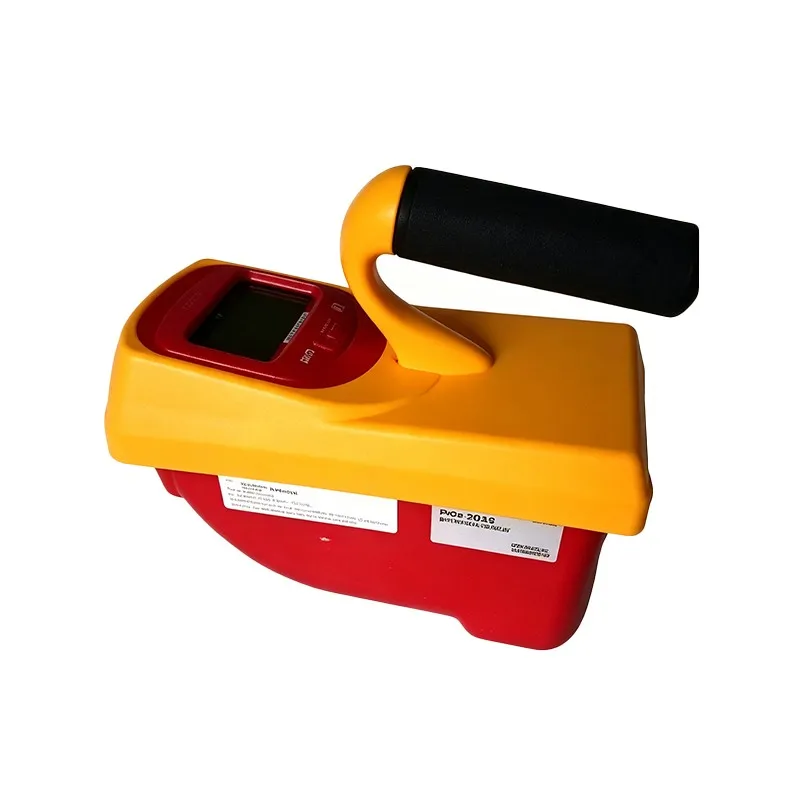

Inovision 451P X/ϒ Radiation Dose Survey

The autorange 451P employs a pressurized ionization chamber, offering higher sensitivity (μR resolution) and better energy response for detecting dose rate and dose from X-ray and gamma sources. Originally designed to diagnose leaky and scattered radiation around X-ray and radiotherapy equipment, the 451P's superior field survey capabilities have broad applicability across various fields, including X-ray equipment manufacturers, government oversight agencies, biomedical technicians, and maintenance personnel for airport package scanning equipment.

The ionization chamber detector provides the instrument with a fast response time to leaky, scattered, and diffracted radiation. Furthermore, the low-noise ionization chamber bias ensures rapid background stabilization.

The display features an analog bar graph pointer, a 2.5-digit digital reading, low battery and freeze mode indicators, and automatic backlighting. User controls include an ON/OFF button and a MODE button. The instrument is constructed from lightweight, high-strength materials and is sealed against moisture. The RS-232 interface allows direct connection to a computer to utilize the Windows® (451EXL) Excel add-in, enhancing the instrument's functionality. This software enables data retrieval, user parameter selection, and provides a virtual instrument display with sound (sound card required) and visual alarm indicators.

Key Features:
1. Wide range of applications, including (alpha, gamma) non-destructive testing, X-ray and environmental testing
2. Battery powered
3. Automatic range switching and automatic zeroing
4. RS-232 communication interface
5. Simultaneous measurement of dose rate and dose
6. Peak hold mode for convenient peak capture measurement, especially suitable for shielding and leakage measurement of diagnostic X-ray equipment
7. Programmable flash display and alarm
8. Automatic ultra-bright LCD display
9. Independent accumulation mode
10. Windows Excel spreadsheet (optional)
11. Real-time data logging
12. Downloadable data stored in the instrument
13. 2700 Datasets

14. Virtual instrument display with audio-visual alarm indicators

15. Supports user instrument configuration and parameter selection

16. User-selectable operating mode

Main parameters:

1. Detectable radiation: β-rays greater than 1 MeV, X-rays and γ-rays greater than 25 keV

2. Configuration: Pressurized μR ionization chamber (230cc pressurized air ionization chamber to 8 atmospheres or 125 psi)

3. Automatic functions: Automatic zeroing, automatic sizing, and automatic backlight illumination

4. Accuracy: Within 10% of the reading between 10% and 100% of any full-scale scale indication

5. Sensitivity: 0-50 μSv/h 2

0-500 μSv/h 1.8

0-5000 μSv/h 1.8

0-50000 μSv/h 1.8

6. Measuring range: 0-50 mSv/h

7. Temperature requirement: -20-50 degrees Celsius

8. Preheating time: 2 minutes when the temperature is similar to the ambient temperature

9. Weight: 1.07 kg
Dimensions: 10cm × 20cm × 15cm
